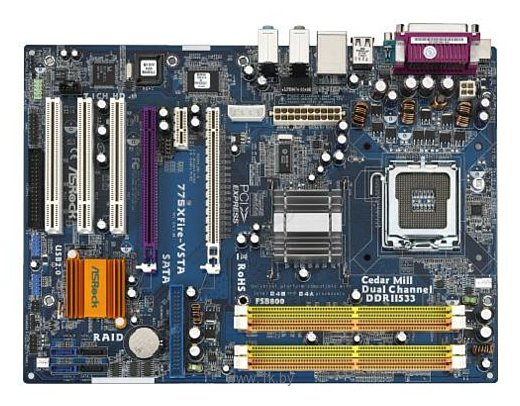

Asrock 775XFire-VSTA 775XFire VSTA Motherboard socket 775 PCIe LAN SATA RAID USB
Crossfire Tm Operation Guide 3D application. Before you install the motherboard, study the 775xfiire-vsta of your chassis to ensure that the motherboard fits into it.
Insert the Support CD into your optical drive to boot your system. Page 27 USB 2. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. Acpi Configuration Use this item to enable or disable Ring-In signals to turn on the system from the power-soft-off mode. Guide to sata hard disks installation and raid configuration 10 pages.
Got it, continue to print. Page 15 PnP cap to assist in removal.
Aata reading the floppy disk, the driver will be presented. Unlock a DIMM slot by pressing the retaining clips outward. If this feature is enabled, it will enhance hard disk performance by reading or writing more data during each transfer. Hardware Health Event Monitoring Screen Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.
ASROCK XFIRE-VSTA - V USER MANUAL Pdf Download.
Page 41 Ratio CMOS Setting If the ratio awrock is unlocked, you will find this item appear to allow you changing the ratio value of this motherboard. Guide to sata hard disks installation and raid configuration 16 pages. Comments to this Manuals Your Name. Do not force to insert the CPU into the socket if above situation is found.
This cap must be placed if returning the motherboard for after service. PnP cap to assist in removal. By pressing 'print' button you will print only current page. Serial Port Address Use this item to set the address for the onboard serial port or disable it.
Enter text from picture: Parallel Port Address Use this item to set the address for the onboard parallel port or disable it. This manual also for: In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by- step guide to the hardware installation. Ratio CMOS Setting If the ratio status is unlocked, you will find this item appear to allow you changing the ratio value of this motherboard. The data in CMOS includes system setup information such as system password, date, time, and system setup parameters.
ASROCK 775XFIRE-VSTA Installation Manual Page 29
Page 49 Parallel Port Address Use this item to set the address for the onboard parallel port or disable it. Parallel Port Mode Use this item to set the operation mode of the parallel port.
Page 2 including damages for loss of profits, loss of business, loss of data, interruption of business and the likeeven if ASRock has been advised of the possibility of such damages arising from any defect or error in the manual or product. This item should always be [Auto] for better system stability. Don't have an account? DIMMs or the system components. It is recommended to use the cap tab to handle and avoid kicking off the PnP cap.
